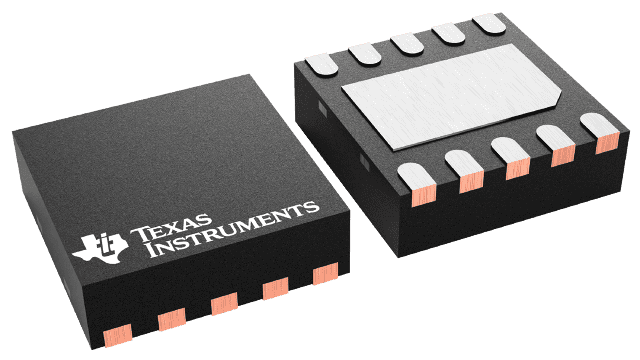

TPS61093DSKR Texas Instruments - Yeehing Electronics

Low Input, 20V/1.1A Step-Up DC/DC Converter with Integrated Power Diode and Input/Output Isolation

Pricing (USD)

Quantity	Unit Price
1 — 99	1.533
100 — 249	1.343
250 — 999	0.942
1,000 +	0.53

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS61093DSKR Datasheet

More Information

The TPS61093 is a 1.2-MHz, fixed-frequency boost converter designed for high integration and high reliability. The IC integrates a 20-V power switch, input/output isolation switch, and power diode. When the output current exceeds the overload limit, the isolation switch of the IC opens up to disconnect the output from the input, thus protecting the IC and the input supply. The isolation switch also disconnects the output from the input during shutdown to minimize leakage current. When the IC is shut down, the output capacitor is discharged to a low voltage level by internal diodes. Other protection features include 1.1-A peak overcurrent protection (OCP) at each cycle, output overvoltage protection (OVP), thermal shutdown, and undervoltage lockout (UVLO).
