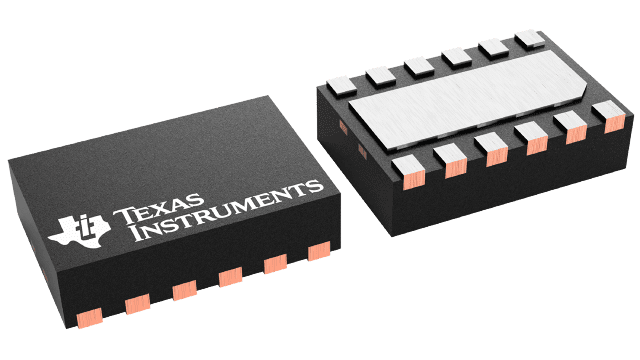

TPS61096ADSST Texas Instruments - Yeehing Electronics
28-V Output Voltage Boost Converter with 1-µA Quiescent Current
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.248 |
| 100 — 249 | 1.03 |
| 250 — 999 | 0.74 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-12 |
| Output Voltage | 4.5 V to 28 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Boost |
| Input Voltage MIN | 1.8 V |
| Switching Frequency | - |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS61096A |
| Packaging | Reel |
| Input Voltage | 1.8 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 1.2 uA |
| Type | Boost Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS61096EVM-787 |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1.8 V |
| Unit Weight | 0.000628 oz |
For more information, please refer to datasheet
Documents
| TPS61096ADSST Datasheet |
More Information
The TPS61096A is a high output voltage boost converter with ultra-low quiescent current. It is designed for products that require high efficiency at light load conditions powered by either two-cell alkaline, or one-cell Li-Ion or Li-polymer battery.
