TPS61162AYFFR Texas Instruments - Yeehing Electronics

Dual-channel WLED drivers For smart phone

Pricing (USD)

Quantity	Unit Price
1 — 99	0.798
100 — 249	0.614
250 — 999	0.452
1,000 +	0.19

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-55
Maximum Operating Temperature	125
Factory Pack Quantity	3,000

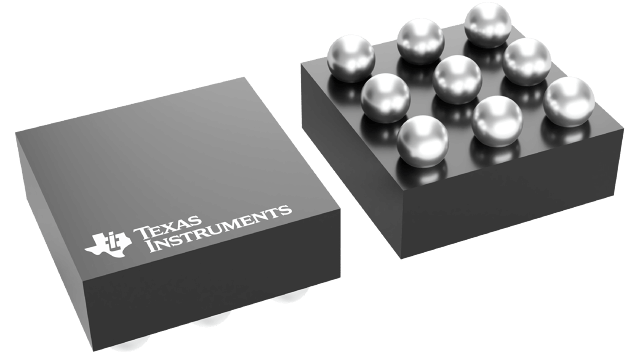

Package | Pins	DSBGA (YFF) | 9

For more information, please refer to datasheet

Documents

TPS61162AYFFR Datasheet

More Information

The TPS61162A and TPS61163A are dual-channel WLED drivers which provide highly integrated solutions for single-cell Li-ion battery powered smart phone backlight. The devices have a built-in high efficiency boost regulator with integrated 1.5-A, 40-V power MOSFET and support as low as 2.7-V input voltage. With two high current-matching capability current sink regulators, the devices can drive up to 10s2p WLED diodes. The boost output can automatically adjust to the WLED forward voltage and allow very low voltage headroom control, thus to improve LED strings efficiency effectively.
