Description
TPS61166DSKR Texas Instruments - Yeehing Electronics
White LED driver w/ integrated power Diode and Fast Burst dimming Mode
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.758 |
| 100 — 249 | 1.452 |
| 250 — 999 | 1.043 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |

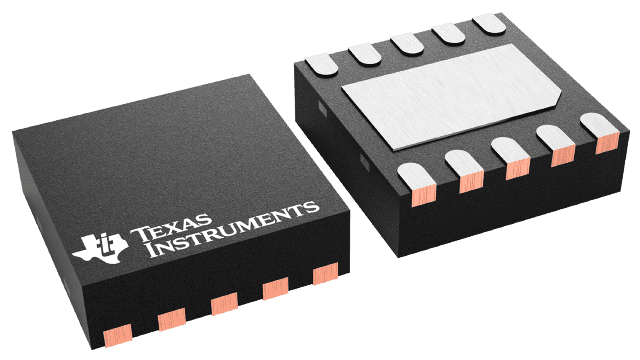

| Package / Case | WSON-10 |
| Series | TPS61166 |
| Packaging | Reel |
| Features | Brightness Control/Dimming, EasyScale 1-Wire Interface, OVP |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
| TPS61166DSKR Datasheet |
More Information
The TPS61166 is a boost converter with a 20-V rated integrated switch FET and power diode that drives up to 5 LEDs in series. This device integrates a high side switch FET that can turn on/off the LED current within 1-µs of the applied external PWM signal. The high side switch also provides input-to-output isolation during IC shutdown.
