Texas Instruments
TPS611781RNWT
TPS611781RNWT
Regular price
$0.76 USD
Regular price
Sale price
$0.76 USD
Unit price
per
Couldn't load pickup availability

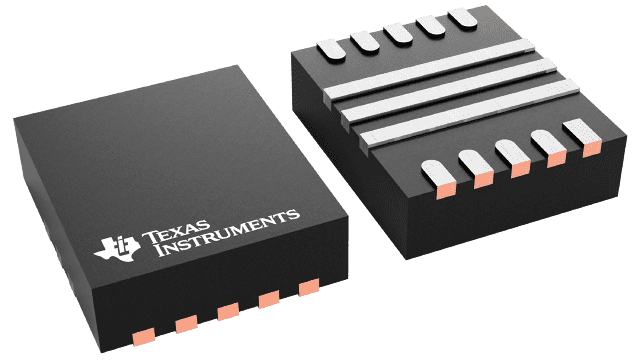

TPS611781RNWT Texas Instruments - Yeehing Electronics
20-V, 10-A fully integrated sync boost with load disconnect
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.182 |
| 100 — 249 | 1.912 |
| 250 — 999 | 1.34 |
| 1,000 + | 0.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-13 |
| Output Voltage | 4.5 V to 20 V |
| Output Current | 7.2 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 20 V |
| Topology | Boost |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 200 kHz to 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS61178x |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 270 uA |
| Type | Synchronous Boost Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.000794 oz |
For more information, please refer to datasheet
Documents
| TPS611781RNWT Datasheet |
More Information
The TPS61178x family is a 20-V synchronous Boost converter with the gate driver built-in for load disconnect. The TPS61178x integrates two low on-resistance power FETs: A 16-mΩ switching FET and a 16-mΩ rectifier FET.
