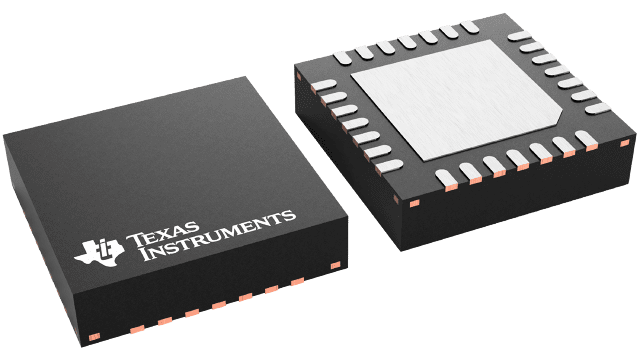

TPS61195RUYR Texas Instruments - Yeehing Electronics
96 LED, 8-channel white LED driver for LCD backlight with SMBus interface
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.452 |
100 — 249 | 2.149 |
250 — 999 | 1.507 |
1,000 + | 0.85 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Package / Case | WQFN-28 |
Series | TPS61195 |
Packaging | Reel |
Features | Load Disconnect During Shutdown |
Operating Temperature Range | - 40 C to + 85 C |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 3000 |
Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
TPS61195RUYR Datasheet |
More Information
The TPS61195 IC provides highly integrated solutions for large-size LCD backlighting. This device has a built-in high efficiency boost regulator with integrated 2.5A/50V power MOSFET. The eight current sink regulators provide high precision current regulation and matching. In total, the device can support up to 96 LEDs. Unused sinks are disabled by tying them to ground. The boost output automatically adjusts its voltage to the WLED forward voltage to improve efficiency.
