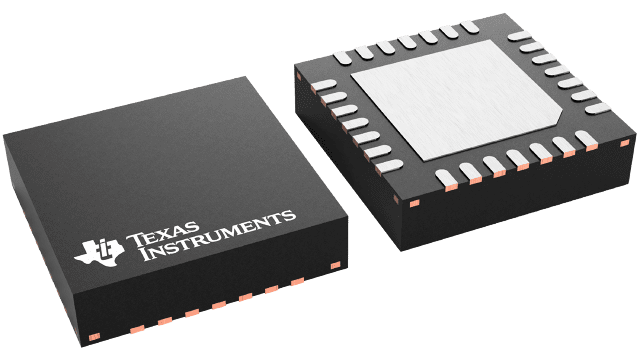

TPS61195RUYT


YeeHing #: Y012-TPS61195RUYT
Inventory: 5400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS61195RUYT Texas Instruments - Yeehing Electronics

96 LED, 8-channel white LED driver for LCD backlight with SMBus interface

Pricing (USD)

Quantity Unit Price
1 — 99 2.943
100 — 249 2.579
250 — 999 1.808
1,000 + 1.02

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LED Lighting Drivers
RoHS Y
Number of Channels 8 Channel
Output Current 2.5 A
Input Voltage 4.5 V to 21 V
Operating Frequency 1 MHz
Supply Current - Max 3 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case WQFN-28
Series TPS61195
Packaging Reel
Features Load Disconnect During Shutdown
Operating Temperature Range - 40 C to + 85 C
Output Type Current Mode
Type Inductive
Brand Texas Instruments
Topology Boost
Moisture Sensitive Yes
Product Type LED Lighting Drivers
Factory Pack Quantity 250
Subcategory Driver ICs
Unit Weight 0.001344 oz

For more information, please refer to datasheet

Documents

TPS61195RUYT Datasheet

More Information

The TPS61195 IC provides highly integrated solutions for large-size LCD backlighting. This device has a built-in high efficiency boost regulator with integrated 2.5A/50V power MOSFET. The eight current sink regulators provide high precision current regulation and matching. In total, the device can support up to 96 LEDs. Unused sinks are disabled by tying them to ground. The boost output automatically adjusts its voltage to the WLED forward voltage to improve efficiency.
