Texas Instruments

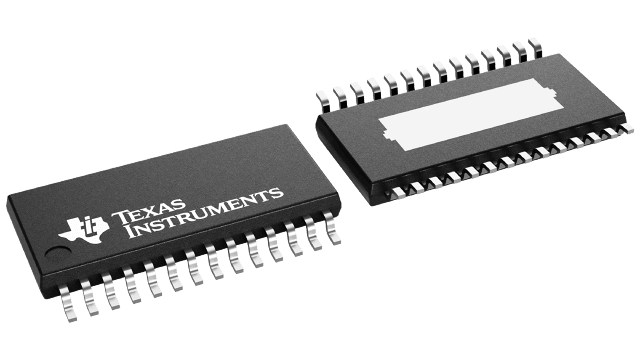

TPS61196PWPRQ1
TPS61196PWPRQ1
Regular price
$0.90 USD
Regular price
Sale price
$0.90 USD
Unit price
per
Couldn't load pickup availability
TPS61196PWPRQ1 Texas Instruments - Yeehing Electronics
6-String 400-mA WLED Drvr w/ Independent PWM dimming for Each String
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.592 |
| 100 — 249 | 2.271 |
| 250 — 999 | 1.592 |
| 1,000 + | 0.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Qualification | AEC-Q100 |
| Series | TPS61196-Q1 |
| Packaging | Reel |
| Features | Brightness Control/Dimming, Adjustable Switch Frequency |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.003979 oz |
For more information, please refer to datasheet
Documents
| TPS61196PWPRQ1 Datasheet |
More Information
The TPS61196-Q1 provides a highly integrated solution for automotive LCD backlighting with an independent PWM dimming function for each string. This device is a current mode boost controller driving up to six WLED strings with multiple LEDs in series. Each string has an independent current regulator providing a LED current adjustable from 50 mA to 400 mA within ±1.5% matching accuracy. The minimal voltage at the current sink is programmable in the range of 0.3 V to 1 V to fit with different LED current settings. The input voltage range for the device is from 8 V to 30 V.
