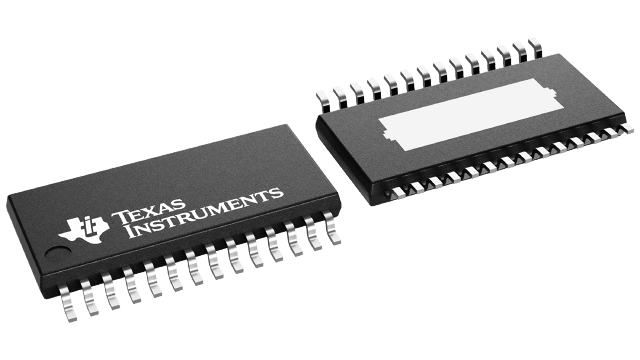

TPS61196PWPT Texas Instruments - Yeehing Electronics

6-String 400-mA WLED driver with Independent PWM dimming for Each String

Pricing (USD)

Quantity	Unit Price
1 — 99	2.634
100 — 249	2.308
250 — 999	1.618
1,000 +	0.91

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	6 Channel
Output Current	400 mA
Input Voltage	8 V to 30 V
Operating Frequency	100 kHz to 800 kHz
Supply Current - Max	2 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-28
Series	TPS61196
Packaging	Reel
Features	Brightness Control/Dimming
Operating Temperature Range	- 40 C to + 85 C
Output Type	Current Mode
Type	Inductive
Brand	Texas Instruments
Topology	Boost
Moisture Sensitive	Yes
Product Type	LED Lighting Drivers
Factory Pack Quantity	250
Subcategory	Driver ICs
Unit Weight	0.004233 oz

For more information, please refer to datasheet

Documents

TPS61196PWPT Datasheet

More Information

The TPS61196 provides a highly integrated solution for LCD TV backlight with an independent PWM dimming function for each string. This device is a current mode boost controller driving up to six WLED strings with multiple LEDs in series. Each string has an independent current regulator providing a LED current adjustable from 50 mA to 400 mA within ±1.5% matching accuracy. The minimal voltage at the current sink is programmable in the range of 0.3 V to 1 V to fit with different LED current settings. The input voltage range for the device is from 8 V to 30 V.
