TPS61230ARNSR Texas Instruments - Yeehing Electronics

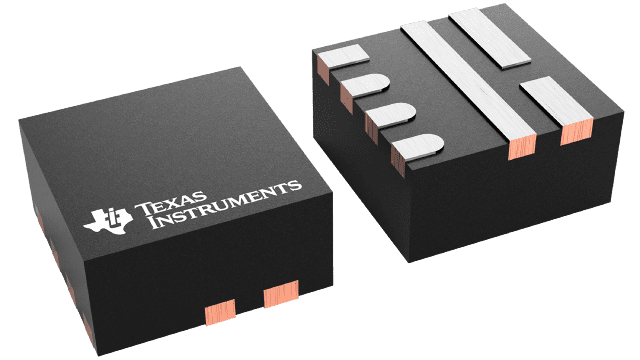

5-V/6-A High Efficiency Step-Up Converter in 2.0-mm x 2.0-mm QFN Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.48 |
| 100 — 249 | 1.15 |
| 250 — 999 | 0.77 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-7 |
| Output Voltage | 2.5 V to 5.5 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 4.5 V |
| Topology | Boost |
| Input Voltage MIN | 2.5 V |
| Switching Frequency | 1.15 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS61230A |
| Packaging | Reel |
| Input Voltage | 2.5 V to 4.5 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 20 uA |
| Type | Synchronous Boost Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Operating Supply Current | 25 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.5 V |
For more information, please refer to datasheet
Documents
| TPS61230ARNSR Datasheet |
More Information
The TPS61230A device is a high efficiency fully integrated synchronous boost converter. It integrates 6-A, 21-mΩ and 18-mΩ power switches, which is capable of delivering up to 2.4-A output current at 5-V output with the 2.5-V input supply. The low RDS_ON switches enable the power conversion efficiency up to 96% and minimize the thermal stress in very compact solution size.
