Texas Instruments
TPS61232DRCT
TPS61232DRCT
Couldn't load pickup availability

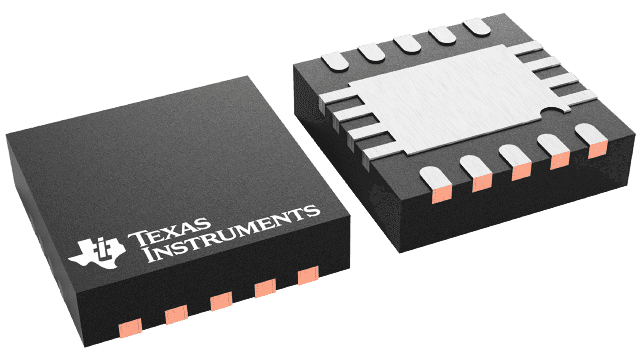

TPS61232DRCT Texas Instruments - Yeehing Electronics
5-A, 5-V fixed output voltage high efficiency synchronous boost converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.23 |
| 100 — 249 | 1.954 |
| 250 — 999 | 1.37 |
| 1,000 + | 0.77 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Output Voltage | 5 V |
| Output Current | 5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Boost |
| Input Voltage MIN | 2.3 V |
| Switching Frequency | 2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS61232 |
| Packaging | Reel |
| Input Voltage | 2.3 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.15 % / A |
| Moisture Sensitive | Yes |
| Operating Supply Current | 35 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.000921 oz |
For more information, please refer to datasheet
Documents
| TPS61232DRCT Datasheet |
More Information
The TPS6123x device family is a high efficiency synchronous step up converter with compact solution size. It is optimized for products powered by a one-cell Li-Ion battery, or a regulated power rail of 3.3 V. The IC integrates a 5-A switch and is capable of delivering output currents up to 2.1 A at a 5-V output with a 3.3-V input supply. The device is based on a quasi-constant on-time valley current mode control scheme. The typical operating frequency is 2 MHz, which allows the use of small inductors and capacitors to achieve a small solution size. The TPS61230 and TPS61231 provide an adjustable output voltage via an external resistor divider, and the TPS61232 provides a fixed output voltage of 5 V.
