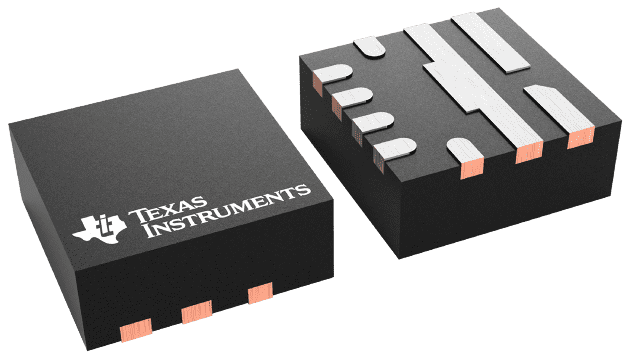

TPS61235PRWLR Texas Instruments - Yeehing Electronics
8-A valley current, 5.1-V fixed output voltage synchronous boost converters
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.525 |
100 — 249 | 1.336 |
250 — 999 | 0.937 |
1,000 + | 0.60 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | VQFN-9 |
Output Voltage | 5.1 V |
Output Current | 8 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 4.5 V |
Topology | Boost |
Input Voltage MIN | 2.3 V |
Switching Frequency | 1 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Series | TPS61235P |
Packaging | Reel |
Input Voltage | 2.3 V to 4.5 V |
Operating Temperature Range | - 40 C to + 85 C |
Quiescent Current | 5 uA |
Type | Synchronous Boost Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Load Regulation | 0.06 %/A |
Operating Supply Current | 10 uA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 2.3 V |
For more information, please refer to datasheet
Documents
TPS61235PRWLR Datasheet |
More Information
The TPS6123x is a high current, high efficiency synchronous boost converter with constant output current feature for single cell Li-Ion and Li-polymer battery powered products, in a wide range of power bank, tablet, and other portable devices. The IC integrates 14-mΩ/14-mΩ power switches and is capable of delivering up to a 3.5-A output current for 3.3-V to 5-V conversion with up to 97% high efficiency. The device supports a programmable constant output current to control power delivery, so to save power path components and lower total system thermal dissipation effectively.
