Texas Instruments
TPS61236PRWLT
TPS61236PRWLT
Regular price
$0.63 USD
Regular price
Sale price
$0.63 USD
Unit price
per
Couldn't load pickup availability

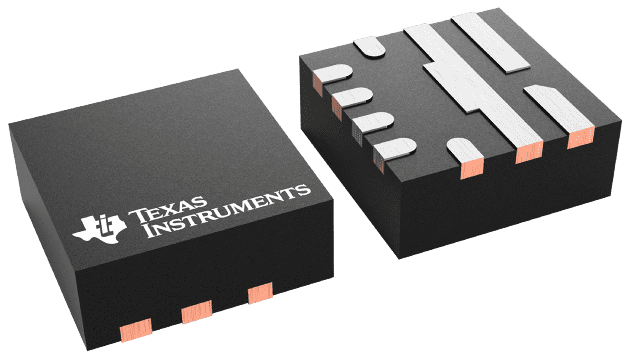

TPS61236PRWLT Texas Instruments - Yeehing Electronics
8-A valley current, adjustable output voltage synchronous boost converters
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.83 |
| 100 — 249 | 1.604 |
| 250 — 999 | 1.124 |
| 1,000 + | 0.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-9 |
| Output Voltage | 2.9 V to 5.5 V |
| Output Current | 8 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 4.9 V |
| Topology | Boost |
| Input Voltage MIN | 2.3 V |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS61236P |
| Packaging | Reel |
| Input Voltage | 2.3 V to 4.9 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 5 uA |
| Type | Synchronous Boost Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.06 %/A |
| Operating Supply Current | 10 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.000515 oz |
For more information, please refer to datasheet
Documents
| TPS61236PRWLT Datasheet |
More Information
The TPS6123x is a high current, high efficiency synchronous boost converter with constant output current feature for single cell Li-Ion and Li-polymer battery powered products, in a wide range of power bank, tablet, and other portable devices. The IC integrates 14-mΩ/14-mΩ power switches and is capable of delivering up to a 3.5-A output current for 3.3-V to 5-V conversion with up to 97% high efficiency. The device supports a programmable constant output current to control power delivery, so to save power path components and lower total system thermal dissipation effectively.
