Description

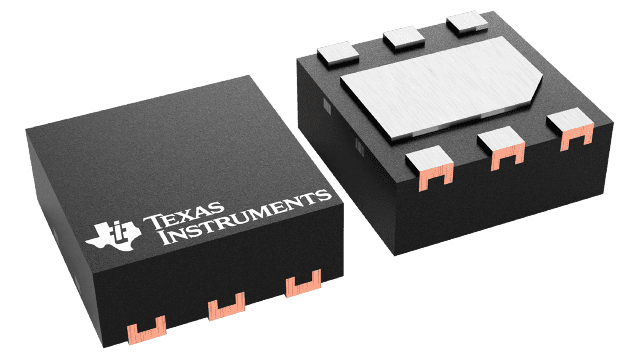

TPS61240IDRVRQ1 Texas Instruments - Yeehing Electronics
2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter, AEC-Q100 qualified
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.577 |
100 — 249 | 1.302 |
250 — 999 | 0.936 |
1,000 + | 4.11 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-6 |
Output Voltage | 5 V |
Output Current | 600 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 5.5 V |
Topology | Boost |
Input Voltage MIN | 2.3 V |
Switching Frequency | 3.5 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Qualification | AEC-Q100 |
Series | TPS61240-Q1 |
Packaging | Reel |
Input Voltage | 2.3 V to 5.5 V |
Operating Temperature Range | - 40 C to + 105 C |
Product | Voltage Regulators |
Type | Voltage Converter |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Current | 30 uA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
TPS61240IDRVRQ1 Datasheet |
More Information
The TPS61240-Q1 device is a high efficient synchronous step up DC-DC converter optimized for products powered by either a three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-Polymer battery. The TPS61240-Q1 supports output currents up to 450 mA. The TPS61240-Q1 has an input valley current limit of 500 mA.
