Texas Instruments
TPS61240TDRVRQ1
TPS61240TDRVRQ1
Regular price
$0.48 USD
Regular price
Sale price
$0.48 USD
Unit price
per
Couldn't load pickup availability
TPS61240TDRVRQ1 Texas Instruments - Yeehing Electronics
2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter, AEC-Q100 qualified
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.676 |
| 100 — 249 | 1.384 |
| 250 — 999 | 0.994 |
| 1,000 + | 0.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

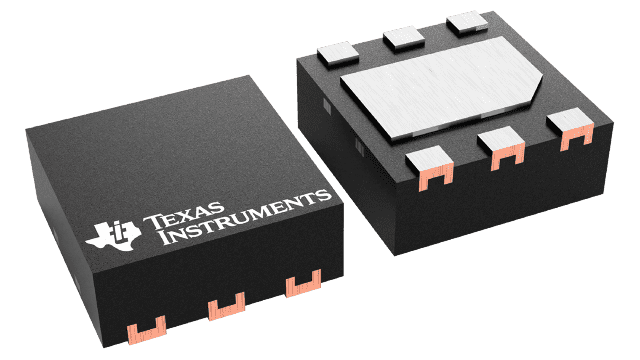

| Package / Case | WSON-6 |
| Output Voltage | 5 V |
| Output Current | 600 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.3 V |
| Switching Frequency | 3.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Qualification | AEC-Q100 |
| Series | TPS61240-Q1 |
| Packaging | Reel |
| Input Voltage | 2.3 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 105 C |
| Quiescent Current | 30 uA |
| Type | Step-Up Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS61240EVM-360 |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.000332 oz |
For more information, please refer to datasheet
Documents
| TPS61240TDRVRQ1 Datasheet |
More Information
The TPS61240-Q1 device is a high efficient synchronous step up DC-DC converter optimized for products powered by either a three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-Polymer battery. The TPS61240-Q1 supports output currents up to 450 mA. The TPS61240-Q1 has an input valley current limit of 500 mA.
