Texas Instruments

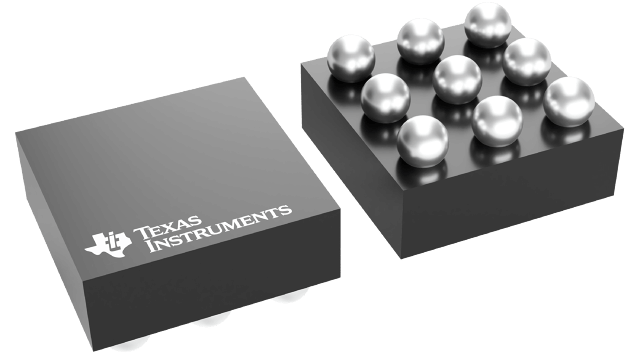

TPS61253AYFFT
TPS61253AYFFT
Regular price
$0.34 USD
Regular price
Sale price
$0.34 USD
Unit price
per
Couldn't load pickup availability
TPS61253AYFFT Texas Instruments - Yeehing Electronics
3.8-MHz, 5-V / 4-A Boost in 1.2-mm x 1.3-mm WCSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.186 |
| 100 — 249 | 0.912 |
| 250 — 999 | 0.672 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-9 |
| Output Voltage | 5 V |
| Output Current | 4 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Boost |
| Input Voltage MIN | 2.3 V |
| Switching Frequency | 3.8 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS6125xA |
| Packaging | Reel |
| Input Voltage | 2.3 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 42 uA |
| Type | Boost Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.000067 oz |
For more information, please refer to datasheet
Documents
| TPS61253AYFFT Datasheet |
More Information
The TPS6125xA device provides a power supply solution for battery-powered portable applications. With the input voltage ranging from 2.3 V to 5.5 V, the device supports the applications powered by the Li-Ion batteries with the extended voltage range. Different fixed output voltage versions are available of 4.5 V, 4.7 V, 5 V, and 5.2 V. The TPS6125xA supports up to 1500-mA load current from a battery discharged as low as 3 V.
