TPS612562CYFFR Texas Instruments - Yeehing Electronics

3.5-MHz, 5-V, 900-mA load boost converter in 1.2-mm x 1.3-mm WCSP, with pass-through mode

Pricing (USD)

Quantity	Unit Price
1 — 99	1.032
100 — 249	0.794
250 — 999	0.585
1,000 +	0.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

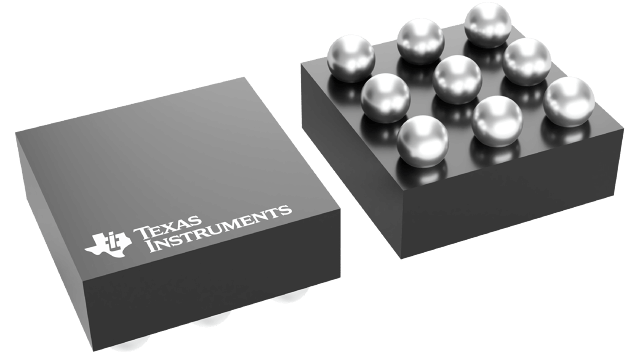

Package / Case	DSBGA-9
Output Voltage	5.2 V
Output Current	2.15 A
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Boost
Input Voltage MIN	2.3 V
Switching Frequency	3.5 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS61256xC
Packaging	Reel
Input Voltage	2.3 V to 5.5 V
Operating Temperature Range	- 40 C to + 85 C
Quiescent Current	30 uA
Type	Step-Up Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	TPS61256EVM-711
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.3 V

For more information, please refer to datasheet

Documents

TPS612562CYFFR Datasheet

More Information

The TPS61256xC device provides a power supply solution for battery-powered portable applications. Intended for low-power applications, the TPS61256xC supports up to 800-mA load current from a battery discharged as low as 2.65 V and allows the use of low cost chip inductor and capacitors.
