Texas Instruments
TPS61256AYFFR
TPS61256AYFFR
Regular price
$0.29 USD
Regular price
Sale price
$0.29 USD
Unit price
per
Couldn't load pickup availability

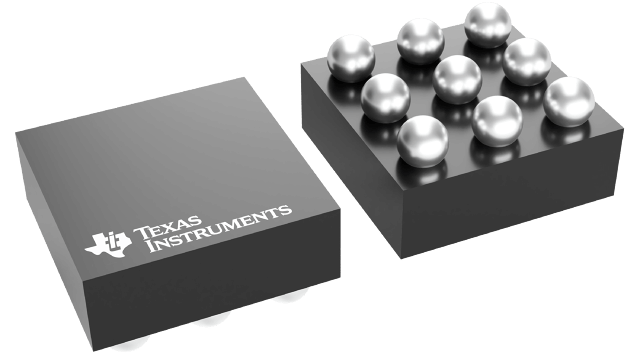

TPS61256AYFFR Texas Instruments - Yeehing Electronics
3.5-MHz, 5-V, 1-A load boost converter in 1.2-mm x 1.3-mm WCSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.032 |
| 100 — 249 | 0.794 |
| 250 — 999 | 0.585 |
| 1,000 + | 0.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-9 |
| Output Voltage | 5 V |
| Output Current | 2.4 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Boost |
| Input Voltage MIN | 2.5 V |
| Switching Frequency | 3.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS61256A |
| Packaging | Reel |
| Input Voltage | 2.5 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 33 uA |
| Type | Step-Up Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS61256EVM-711 |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.5 V |
| Unit Weight | 0.000067 oz |
For more information, please refer to datasheet
Documents
| TPS61256AYFFR Datasheet |
More Information
The TPS61256A device provides a power supply solution for battery-powered portable applications. Intended for low-power applications, the TPS61256A supports up to 800-mA load current from a battery discharged as low as 2.7V and allows the use of low cost chip inductor and capacitors.
