TPS61258YFFR Texas Instruments - Yeehing Electronics

3.5-MHz, 4.5-V, 1.5-A load boost converter in 1.2-mm x 1.3-mm WCSP

Pricing (USD)

Quantity	Unit Price
1 — 99	0.981
100 — 249	0.754
250 — 999	0.555
1,000 +	0.12

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

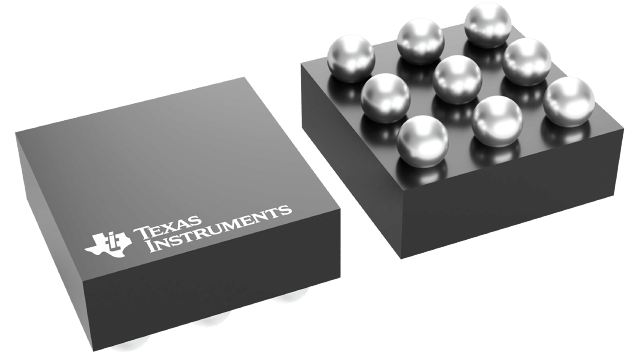

Package / Case	DSBGA-9
Output Voltage	4.5 V
Output Current	3.6 A
Number of Outputs	1 Output
Input Voltage MAX	4.35 V
Topology	Boost
Input Voltage MIN	2.65 V
Switching Frequency	3.5 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS61258
Packaging	Reel
Input Voltage	2.65 V to 4.35 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Voltage Converter
Brand	Texas Instruments
Development Kit	TPS61253EVM-766
Operating Supply Current	20 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000067 oz

For more information, please refer to datasheet

Documents

TPS61258YFFR Datasheet

More Information

The TPS6125x device provides a power supply solution for battery-powered portable applications. Intended for low-power applications, the TPS6125x supports up to 800-mA load current from a battery discharged as low as 2.65V and allows the use of low cost chip inductor and capacitors.
