Texas Instruments
TPS61280DYFFR
TPS61280DYFFR
Regular price
$0.32 USD
Regular price
Sale price
$0.32 USD
Unit price
per
Couldn't load pickup availability

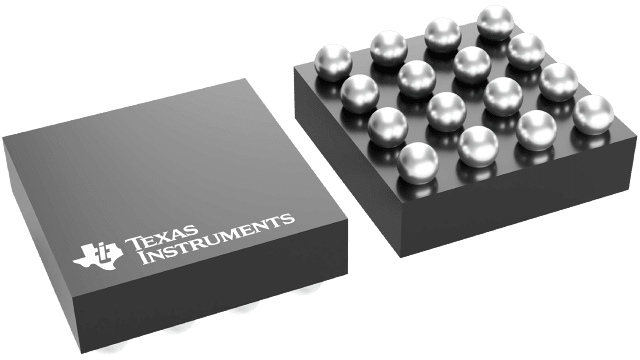

TPS61280DYFFR Texas Instruments - Yeehing Electronics
2.3MHz, 3A, synchronous boost converter with pass-through mode and I2C control interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.141 |
| 100 — 249 | 0.878 |
| 250 — 999 | 0.646 |
| 1,000 + | 0.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-16 |
| Output Voltage | 2.85 V to 4.4 V |
| Output Current | 5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 4.8 V |
| Topology | Boost |
| Input Voltage MIN | 2.3 V |
| Switching Frequency | 2.3 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS61280D |
| Packaging | Reel |
| Input Voltage | 2.3 V to 4.8 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | 47.4 uA |
| Type | Synchronous Boost Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS61280EVM-585 |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.3 V |
For more information, please refer to datasheet
Documents
| TPS61280DYFFR Datasheet |
More Information
The TPS6128xD device provides a power supply solution for products powered by either by a Li-Ion, Nickel-Rich, Silicon Anode, Li-Ion or LiFePO4 battery. The voltage range is optimized for single-cell portable applications like in smart-phones or tablet PCs.
