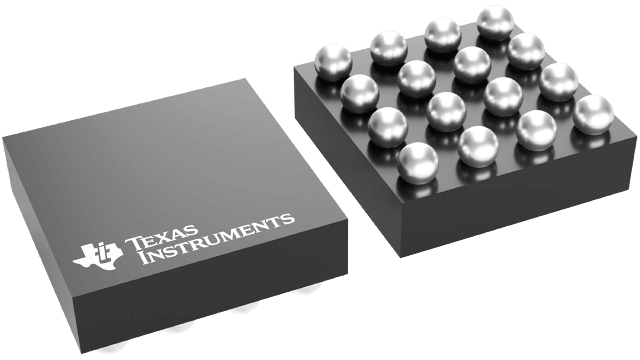

TPS61281DYFFR Texas Instruments - Yeehing Electronics

2.3MHz 3A synchronous boost converter with pass-through mode

Pricing (USD)

Quantity	Unit Price
1 — 99	1.141
100 — 249	0.878
250 — 999	0.646
1,000 +	0.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-16
Output Voltage	3.35 V
Output Current	3 A
Number of Outputs	1 Output
Input Voltage MAX	4.8 V
Topology	Boost
Input Voltage MIN	2.3 V
Switching Frequency	2.3 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS61280D
Packaging	Reel
Input Voltage	2.3 V to 4.8 V
Operating Temperature Range	- 40 C to + 85 C
Quiescent Current	47.4 uA
Type	DC/DC Converter
Brand	Texas Instruments
Shutdown	Shutdown
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.3 V

For more information, please refer to datasheet

Documents

TPS61281DYFFR Datasheet

More Information

The TPS6128xD device provides a power supply solution for products powered by either by a Li-Ion, Nickel-Rich, Silicon Anode, Li-Ion or LiFePO4 battery. The voltage range is optimized for single-cell portable applications like in smart-phones or tablet PCs.
