Texas Instruments

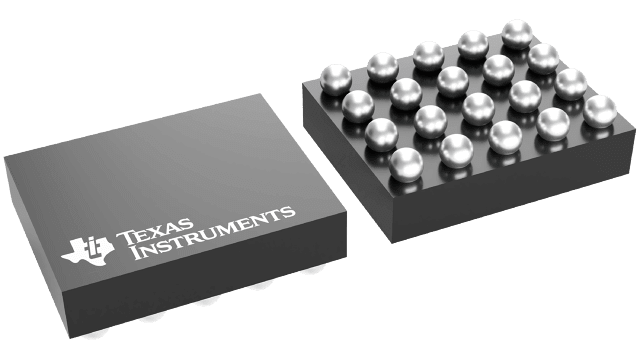

TPS61300YFFT
TPS61300YFFT
Regular price
$0.71 USD
Regular price
Sale price
$0.71 USD
Unit price
per
Couldn't load pickup availability
TPS61300YFFT Texas Instruments - Yeehing Electronics
1.5A/4.1A multiple LED Camera flash driver with I2CTM compatible interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.877 |
| 100 — 249 | 1.53 |
| 250 — 999 | 1.203 |
| 1,000 + | 0.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 3 Channel |
| Output Current | 1.5 A |
| Input Voltage | 2.5 V to 5.5 V |
| Operating Frequency | 2 MHz |
| Supply Current - Max | 0.7 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-20 |
| Series | TPS61300 |
| Packaging | Reel |
| Features | Load Disconnect During Shutdown |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | Constant Current |
| Type | Inductive |
| Brand | Texas Instruments |
| Topology | Boost |
| High Level Output Current | 8 mA |
| Low Level Output Current | 8 mA |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
| TPS61300YFFT Datasheet |
More Information
The TPS6130xx device is based on a high-frequency synchronous boost topology with constant current sinks to drive up to three white LEDs in parallel (400-mA, 800-mA, and 400-mA maximum flash current). The extended high-current mode (HC_SEL) allows up to 1025-mA, 2050-mA, and 1025-mA flash current out of the storage capacitor.
