TPS61301YFFT Texas Instruments - Yeehing Electronics

1.5A/4.1A multiple LED Camera flash driver with I2CTM compatible interface and Hardware Reset Input

Pricing (USD)

Quantity	Unit Price
1 — 99	1.877
100 — 249	1.53
250 — 999	1.203
1,000 +	0.71

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	3 Channel
Output Current	1.5 A
Input Voltage	2.5 V to 5.5 V
Operating Frequency	2 MHz
Supply Current - Max	0.7 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

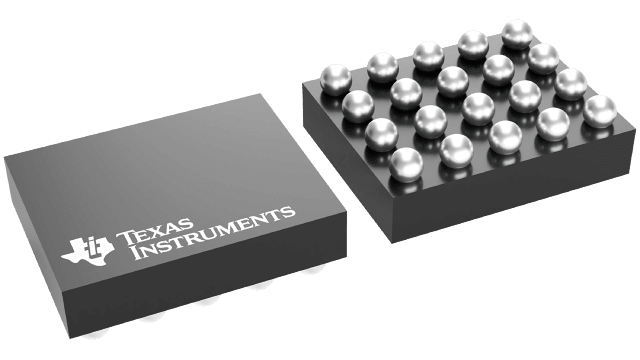

Package / Case	DSBGA-20
Series	TPS61301
Packaging	Reel
Features	Load Disconnect During Shutdown
Operating Temperature Range	- 40 C to + 85 C
Output Type	Constant Current
Type	Inductive
Brand	Texas Instruments
Topology	Boost
High Level Output Current	8 mA
Low Level Output Current	8 mA
Operating Supply Voltage	2.5 V to 5.5 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	250
Subcategory	Driver ICs
Unit Weight	0.000166 oz

For more information, please refer to datasheet

Documents

TPS61301YFFT Datasheet

More Information

The TPS6130xx device is based on a high-frequency synchronous boost topology with constant current sinks to drive up to three white LEDs in parallel (400-mA, 800-mA, and 400-mA maximum flash current). The extended high-current mode (HC_SEL) allows up to 1025-mA, 2050-mA, and 1025-mA flash current out of the storage capacitor.
