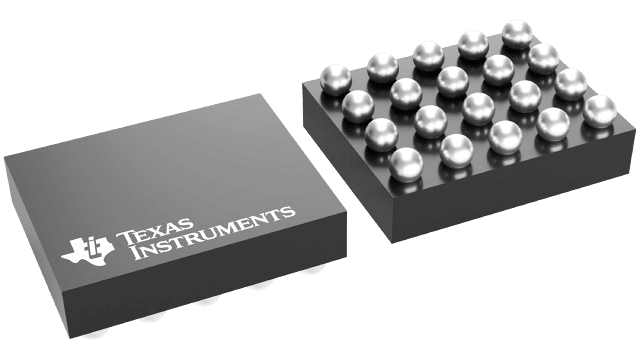

TPS61305YFFR Texas Instruments - Yeehing Electronics

1.5A/4.1A multiple LED Camera flash driver with I2CTM compatible interface and LED Temp Monitoring

Pricing (USD)

Quantity	Unit Price
1 — 99	1.717
100 — 249	1.505
250 — 999	1.055
1,000 +	0.59

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Output Current	1.5 A
Input Voltage	2.5 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-20
Series	TPS61305
Packaging	Reel
Features	Load Disconnect During Shutdown
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
High Level Output Current	8 mA
Low Level Output Current	8 mA
Operating Supply Voltage	2.5 V to 5.5 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs

For more information, please refer to datasheet

Documents

TPS61305YFFR Datasheet

More Information

The TPS6130xx device is based on a high-frequency synchronous boost topology with constant current sinks to drive up to three white LEDs in parallel (400-mA, 800-mA, and 400-mA maximum flash current). The extended high-current mode (HC_SEL) allows up to 1025-mA, 2050-mA, and 1025-mA flash current out of the storage capacitor.
