Texas Instruments
TPS61310YFFR
TPS61310YFFR
Regular price
$0.32 USD
Regular price
Sale price
$0.32 USD
Unit price
per
Couldn't load pickup availability

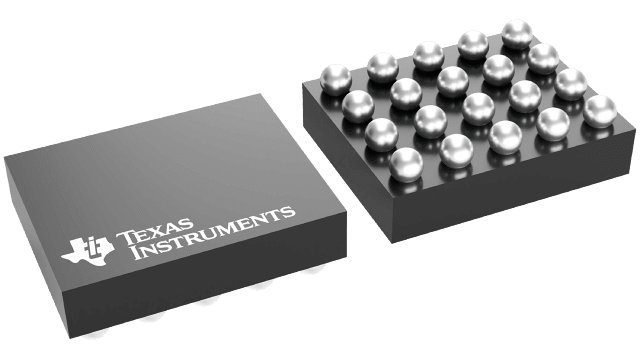

TPS61310YFFR Texas Instruments - Yeehing Electronics
1.5A multiple LED Camera flash driver with I2C compatible interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.026 |
| 100 — 249 | 0.847 |
| 250 — 999 | 0.609 |
| 1,000 + | 0.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 1 Channel |
| Output Current | 1.5 A |
| Input Voltage | 2.5 V to 5.5 V |
| Operating Frequency | 1.92 MHz |
| Supply Current - Max | 11.3 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-20 |
| Series | TPS61310 |
| Packaging | Reel |
| Features | I2C Control |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | - |
| Product | LED Drivers |
| Type | LED Driver |
| Brand | Texas Instruments |
| Topology | Boost |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Pd - Power Dissipation | 1.4 W |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000155 oz |
For more information, please refer to datasheet
Documents
| TPS61310YFFR Datasheet |
More Information
The TPS6131x family is an integrated solution with a wide feature set for driving up to three LEDs for still-camera flash strobe and video-camera lighting applications. It is based on a high efficiency synchronous boost topology with combinable current sinks to drive up to three white LEDs in parallel. The 2-MHz switching frequency allows the use of small and low-profile 2.2-µH inductors. To optimize overall efficiency, the device operates with a low LED-feedback voltage and regulated output-voltage adaptation.
