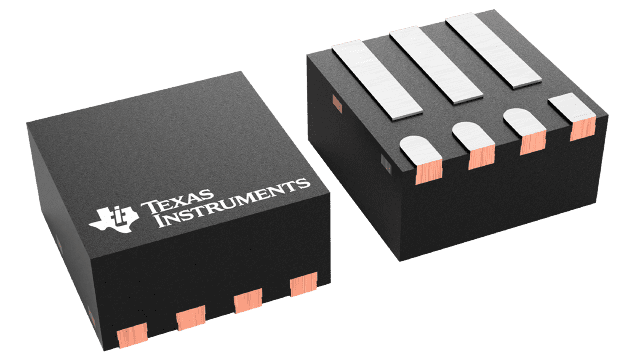

TPS62086RLTT Texas Instruments - Yeehing Electronics

3-A Step-Down Converter with DCS-Control and Hiccup Short Circuit Protection in 2x2 QFN Package

Pricing (USD)

Quantity	Unit Price
1 — 99	1.901
100 — 249	1.666
250 — 999	1.168
1,000 +	0.66

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VSON-7
Output Voltage	3.3 V
Output Current	3 A
Number of Outputs	1 Output
Input Voltage MAX	6 V
Topology	Buck
Input Voltage MIN	2.5 V
Switching Frequency	2.4 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS62086
Packaging	Reel
Function	Step Down
Input Voltage	2.5 V to 6 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Converters
Type	Voltage Converter
Brand	Texas Instruments
Shutdown	Shutdown
Operating Supply Current	17 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.5 V
Tradename	HotRod

For more information, please refer to datasheet

Documents

TPS62086RLTT Datasheet

More Information

The TPS62085, TPS62086, and TPS62087 devices are high-frequency synchronous step-down converters optimized for small solution size and high efficiency. With an input voltage range of 2.5 V to 6.0 V, common battery technologies are supported. The devices focus on high-efficiency step-down conversion over a wide output current range. At medium to heavy loads, the converter operates in PWM mode and automatically enters Power Save Mode operation at light load to maintain high efficiency over the entire load current range.
