Description
TPS62089AYFPR Texas Instruments - Yeehing Electronics
2.4-V to 5.5-V input, 2-A, step-down converter in 1.2-mm x 0.8-mm WCS package with forced-PWM
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.136 |
| 100 — 249 | 0.874 |
| 250 — 999 | 0.644 |
| 1,000 + | 0.37 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS62089AYFPR Datasheet |
More Information

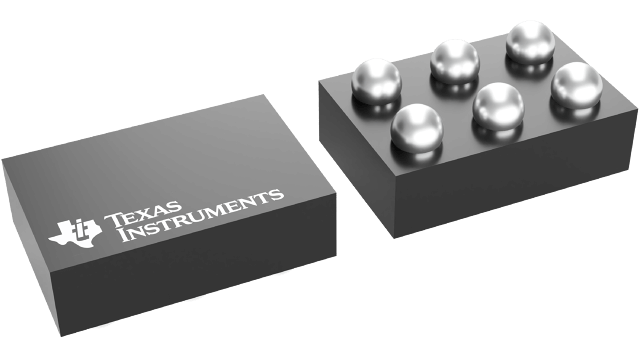

The TPS6208xx device family is a high-frequency synchronous step-down converters optimized for small solution size and high efficiency. With an input voltage range of 2.4 V to 5.5 V, common battery technologies are supported. At medium to heavy loads, the converter operates in PWM mode and automatically enters power save mode operation at light load to maintain high efficiency over the entire load current range. The forced PWM version of the device maintains a CCM operation across any load. The 4-MHz switching frequency allows the device to use small external components. Together with its DCS-control architecture, excellent load transient performance, and output voltage regulation accuracy are achieved. Other features like overcurrent protection, thermal shutdown protection, active output discharge, and power good are built in. The device is available in a 6-pin WCSP package.
