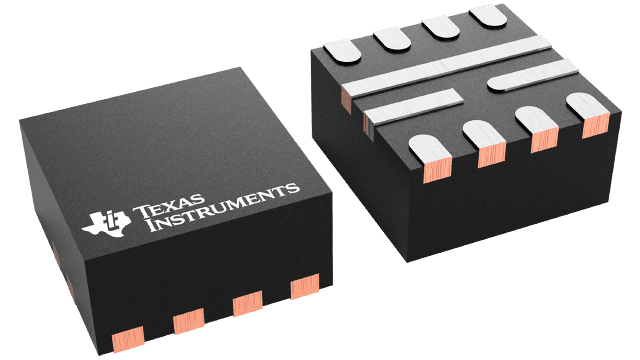

TPS62097RWKT Texas Instruments - Yeehing Electronics

2-A Step Down Converter with Selectable Switching Frequency in HotRod package

Pricing (USD)

Quantity	Unit Price
1 — 99	1.667
100 — 249	1.376
250 — 999	0.989
1,000 +	0.52

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-11
Output Voltage	800 mV to 6 V
Output Current	2 A
Number of Outputs	1 Output
Input Voltage MAX	6 V
Topology	Buck
Input Voltage MIN	2.5 V
Switching Frequency	1.5 MHz to 2.5 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS62097
Packaging	Reel
Input Voltage	2.5 V to 6 V
Operating Temperature Range	- 40 C to + 125 C
Type	Synchronous Buck Converter
Brand	Texas Instruments
Shutdown	Shutdown
Load Regulation	0.2 %/A
Operating Supply Current	40 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.5 V
Tradename	HotRod
Unit Weight	0.000353 oz

For more information, please refer to datasheet

Documents

TPS62097RWKT Datasheet

More Information

The TPS62097 device is a synchronous step-down converter optimized for high efficiency and noise critical applications. The devices focus on high efficiency conversion over a wide output current range. At medium to heavy loads, the converter operates in PWM mode and automatically enters Power Save Mode operation at light load. The switching frequency is selectable in the range of 1.5 MHz to 2.5 MHz by an external resistor. iDCS-Control is able to be operated in forced PWM mode for low noise operation with a fixed switching frequency.
