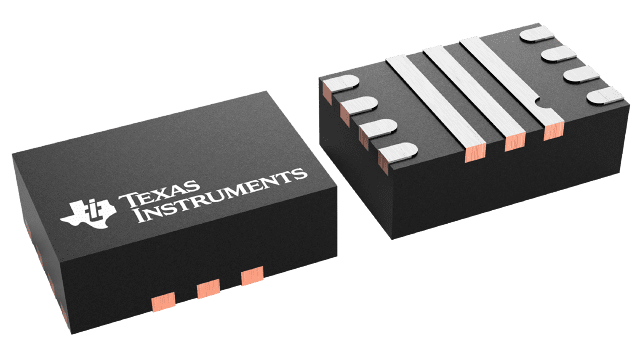

TPS621351RGXT Texas Instruments - Yeehing Electronics

3-17V 4.0A Step-Down Converter with 1% accuracy and PFM/Forced-PWM in 2x3QFN

Pricing (USD)

Quantity	Unit Price
1 — 99	1.667
100 — 249	1.376
250 — 999	0.989
1,000 +	0.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-11
Output Voltage	800 mV to 12 V
Output Current	3.5 A
Number of Outputs	1 Output
Input Voltage MAX	17 V
Topology	Buck
Input Voltage MIN	3 V
Switching Frequency	2.5 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS62135
Packaging	Reel
Input Voltage	3 V to 17 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	18 uA
Type	Step-Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	TPPS62135EVM-698
Load Regulation	0.05 %/A
Operating Supply Current	18 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3 V
Unit Weight	0.000480 oz

For more information, please refer to datasheet

Documents

TPS621351RGXT Datasheet

More Information

The TPS62135 and TPS621351 are high efficiency and easy to use synchronous step-down DC-DC converters, based on the DCS-Control™ Topology. The devices wide input voltage range of 3-V to 17-V makes it suitable for multi-cell Li-Ion as well as 12-V intermediate supply rails. The devices provide 4-A continuous output current. The TPS62135 automatically enters Power Save Mode at light loads to maintain high efficiency across the whole load range. With that, the device is well suited for applications that require connected standby performance, like ultra low power computers. With the MODE pin set to low, the switching frequency of the device is adapted automatically based on the input and output voltage. This technique is called Automatic Efficiency Enhancement (AEE™) and maintains high conversion efficiency over the whole operation range. It provides a 1% output voltage accuracy in PWM mode and therefore enables the design of a power supply with high output voltage accuracy.
