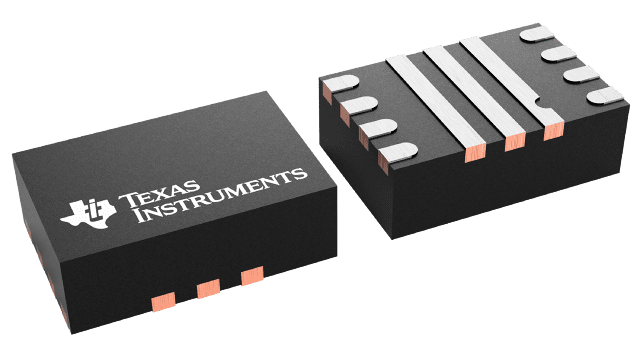

TPS62148RGXR Texas Instruments - Yeehing Electronics

3-17V 2.0A Step-Down Converter with 1% accuracy and PFM/Forced-PWM in 2x3QFN

Pricing (USD)

Quantity	Unit Price
1 — 99	1.277
100 — 249	1.055
250 — 999	0.758
1,000 +	0.40

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-HR-11
Output Voltage	0.8 V to 12 V
Output Current	2 A
Number of Outputs	1 Output
Input Voltage MAX	17 V
Topology	Buck
Input Voltage MIN	3 V
Switching Frequency	1.25 MHz, 2.5 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS62148
Packaging	Reel
Input Voltage	3 V to 17 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	18 uA
Type	Step-Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Load Regulation	0.05 %/A
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3 V

For more information, please refer to datasheet

Documents

TPS62148RGXR Datasheet

More Information

The TPS62147 and TPS62148 are high efficiency and easy-to-use synchronous step-down DC/DC converters, based on the DCS-Control™ Topology. The wide input voltage range of 3-V to 17-V make them suitable for multi-cell Li-Ion as well as 12-V intermediate supply rails. The devices provide 2-A continuous output current. They automatically enter Power Save Mode at light loads to maintain high efficiency across the whole load range. With that, they are well suited for applications that require connected standby performance, like industrial PC and video surveillance. With the MODE pin set to low, the switching frequency is adapted automatically based on the output current and also on input and output voltage. This technique is called Automatic Efficiency Enhancement (AEE™) and maintains high conversion efficiency over the whole operation range. TPS62147, TPS62148 provide a 1% output voltage accuracy in PWM mode and therefore enable the design of a power supply with high output voltage accuracy. The FSEL pin allows to set a switching frequency in forced PWM mode of 1.25 MHz or 2.5 MHz, respectively.
