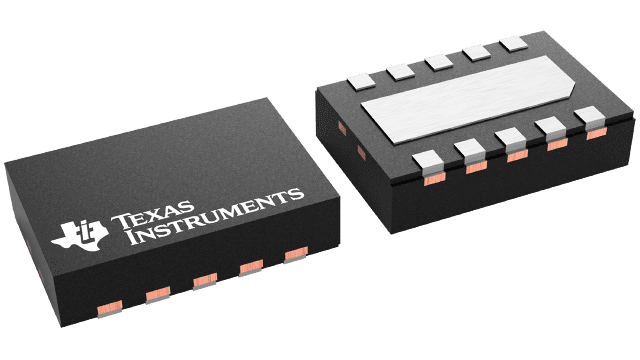

TPS62177DQCR Texas Instruments - Yeehing Electronics
28V, 0.5A Step-Down Converter with SNOOZE Mode
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.12 |
| 100 — 249 | 0.925 |
| 250 — 999 | 0.665 |
| 1,000 + | 0.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 28 V |
| Topology | Buck |
| Input Voltage MIN | 4.75 V |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS62177 |
| Packaging | Reel |
| Input Voltage | 4.75 V to 28 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.02 % / A |
| Moisture Sensitive | Yes |
| Operating Supply Current | 4.8 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.75 V |
| Unit Weight | 0.000529 oz |
For more information, please refer to datasheet
Documents
| TPS62177DQCR Datasheet |
More Information
The TPS6217x is a high efficiency synchronous step-down DC/DC converter, based on the DCS-Control™ topology.
