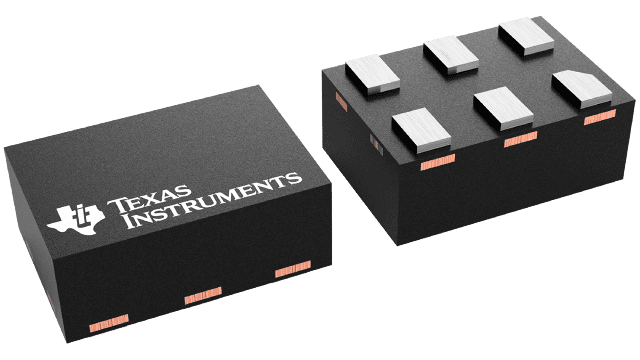

TPS622314DRYT Texas Instruments - Yeehing Electronics

2 MHz Ultra Small Step Down Converter with DCS-Control in 1x1.5 SON Package

Pricing (USD)

Quantity	Unit Price
1 — 99	1.154
100 — 249	0.953
250 — 999	0.684
1,000 +	0.41

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SON-6
Output Voltage	1.5 V
Output Current	500 mA
Number of Outputs	1 Output
Input Voltage MAX	6 V
Topology	Buck
Input Voltage MIN	2.05 V
Switching Frequency	3 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS622314
Packaging	Reel
Input Voltage	2.05 V to 6 V
Operating Temperature Range	- 40 C to + 125 C
Product	Voltage Regulators
Type	Voltage Converter
Brand	Texas Instruments
Shutdown	Shutdown
Operating Supply Current	22 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000099 oz

For more information, please refer to datasheet

Documents

TPS622314DRYT Datasheet

More Information

The TPS6223x device family is a high-frequency, synchronous, step-down DC – DC converter optimized for battery powered portable applications. It supports up to 500-mA output current and allows the use of tiny and low-cost chip inductors and capacitors.
