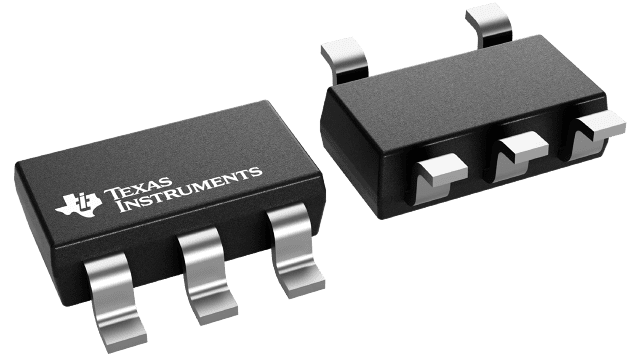

TPS62243QDDCRQ1 Texas Instruments - Yeehing Electronics
2.25-MHz 300-mA Step-Down Converter in DDC/TSOT23 Package
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.153 |
100 — 249 | 0.887 |
250 — 999 | 0.653 |
1,000 + | 4.11 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SOT-23-Thin-5 |
Output Voltage | 1.8 V |
Output Current | 300 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 6 V |
Topology | Buck |
Input Voltage MIN | 2 V |
Switching Frequency | 2.25 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TPS62243-Q1 |
Packaging | Reel |
Input Voltage | 2 V to 6 V |
Operating Temperature Range | - 40 C to + 125 C |
Quiescent Current | 15 uA |
Type | Synchronous Step-Down Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Load Regulation | - 0.5 %/A |
Moisture Sensitive | Yes |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 2 V |
Unit Weight | 0.000381 oz |
For more information, please refer to datasheet
Documents
TPS62243QDDCRQ1 Datasheet |
More Information
The TPS6224x-Q1 devices are high-efficiency synchronous DC/DC step-down converters providing a fixed output voltage and up to 300 mA of output current. They offer low power consumption for battery-powered/always-on automotive applications like Remote Keyless Entry (RKE) or Passive Entry Passive Start (PEPS) key fobs and base stations. With an input voltage range of 2 V to 6 V, the devices support applications powered by Li-MnO2 coin cell batteries, Li-Ion batteries, two- (2S) and three-cell (3S) alkaline, 3.3-V and 5-V input voltage rails. The TPS6224x-Q1 operate at a 2.25-MHz fixed switching frequency at high load current and enters the power-save mode operation at light load currents to maintain high efficiency and low power consumption over the entire load current range. The power-save mode is optimized for low output-voltage ripple. In the shutdown mode, the current consumption is reduced to less than 1 µA. The TPS6224x-Q1 allow the use of small inductors and capacitors to achieve a small solution size, and is available in a 5-pin TSOT23 package.
