Texas Instruments

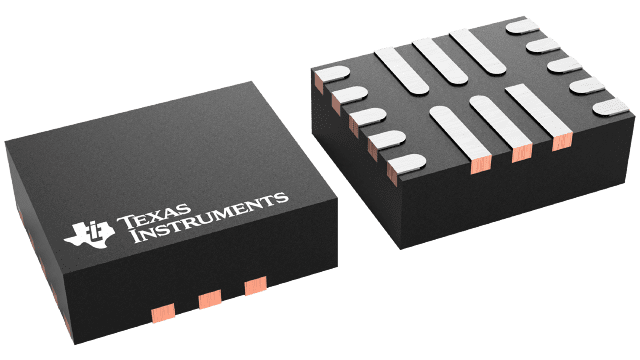

TPS62480RNCT
TPS62480RNCT
Regular price
$0.88 USD
Regular price
Sale price
$0.88 USD
Unit price
per
Couldn't load pickup availability
TPS62480RNCT Texas Instruments - Yeehing Electronics
6A, 2.4V-5.5V input, Synchronous step-down converter with PG Output, Adjust. Soft-start and Optional
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.535 |
| 100 — 249 | 2.221 |
| 250 — 999 | 1.557 |
| 1,000 + | 0.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Output Voltage | 600 mV to 5.5 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.4 V |
| Switching Frequency | 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS62480 |
| Packaging | Reel |
| Input Voltage | 2.4 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Synchronous 2 Phase Step Down DC/DC Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.02 %/A |
| Operating Supply Current | 30 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.4 V |
| Unit Weight | 0.001623 oz |
For more information, please refer to datasheet
Documents
| TPS62480RNCT Datasheet |
More Information
The TPS62480 is a synchronous 2-phase step-down DC-DC converter for low profile point-of-load power supplies. The input voltage range of 2.4 to 5.5 V enables operation from typical 3.3-V or 5-V interface supplies as well as from backup circuits dropping down as low as 2.4 V. The output current is up to 6 A continuously provided by two phases of 3 A each, allowing the use of low-profile external components. Both the rails are running out of phase, reducing pulse current noise significantly.
