Texas Instruments
TPS62650YFFT
TPS62650YFFT
Regular price
$0.48 USD
Regular price
Sale price
$0.48 USD
Unit price
per
Couldn't load pickup availability

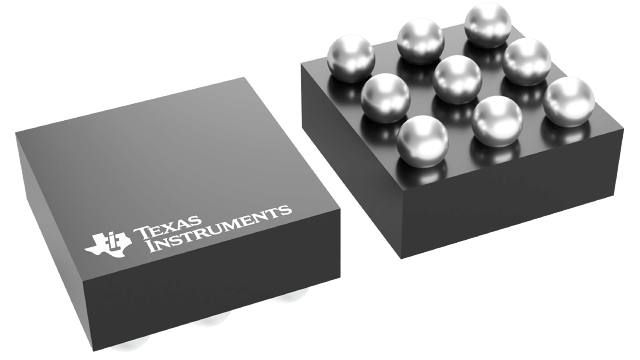

TPS62650YFFT Texas Instruments - Yeehing Electronics
800-mA, 6-MHz Synchronous Step-Down Converter in Chip Scale Packaging
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.386 |
| 100 — 249 | 1.214 |
| 250 — 999 | 0.851 |
| 1,000 + | 0.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-9 |
| Output Voltage | 0.75 V to 1.4375 V |
| Output Current | 800 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.3 V |
| Switching Frequency | 6 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS62650 |
| Packaging | Reel |
| Input Voltage | 2.3 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Switching Regulator |
| Brand | Texas Instruments |
| Operating Supply Current | 38 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000071 oz |
For more information, please refer to datasheet
Documents
| TPS62650YFFT Datasheet |
More Information
The TPS6265x device is a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications. Intended for low-power applications, the TPS6265x supports up to 800mA load current and allows the use of small, low cost inductors and capacitors.
