Texas Instruments
TPS62690YFFR
TPS62690YFFR
Regular price
$0.31 USD
Regular price
Sale price
$0.31 USD
Unit price
per
Couldn't load pickup availability

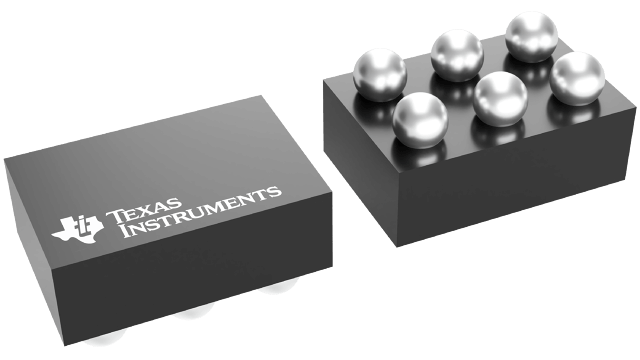

TPS62690YFFR Texas Instruments - Yeehing Electronics
500-mA, 4-MHz, 2.85-Vout High-Efficiency Step-Down Converter in Chip Scale Packaging
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.999 |
| 100 — 249 | 0.825 |
| 250 — 999 | 0.593 |
| 1,000 + | 0.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| Output Voltage | 2.85 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 4.8 V |
| Topology | Buck |
| Input Voltage MIN | 2.3 V |
| Switching Frequency | 4 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS62690 |
| Packaging | Reel |
| Input Voltage | 2.3 V to 4.8 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | TPS62690EVM-076 |
| Operating Supply Current | 19 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| TPS62690YFFR Datasheet |
More Information
The TPS6269x device is a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications. Intended for low-power applications, the TPS6269x supports up to 600-mA load current, and allows the use of low cost chip inductor and capacitors.
