TPS62693YFDT Texas Instruments - Yeehing Electronics

800-mA, 3-MHz High-Efficiency Step-Down Converter, TPS6269x

Pricing (USD)

Quantity	Unit Price
1 — 99	1.248
100 — 249	1.03
250 — 999	0.74
1,000 +	0.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

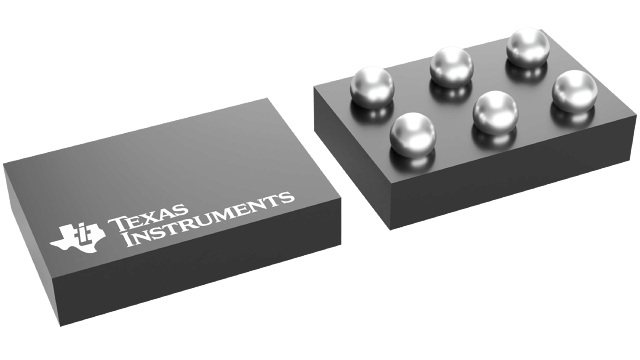

Package / Case	DSBGA-6
Output Voltage	2.85 V
Output Current	800 mA
Number of Outputs	1 Output
Input Voltage MAX	4.8 V
Topology	Buck
Input Voltage MIN	2.3 V
Switching Frequency	3 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS62693
Packaging	Reel
Input Voltage	2.3 V to 4.8 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Step Down Converter
Brand	Texas Instruments
Operating Supply Current	19 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.3 V
Unit Weight	0.000060 oz

For more information, please refer to datasheet

Documents

TPS62693YFDT Datasheet

More Information

The TPS62693 device is a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications. Intended for low-power applications, the TPS62693 supports up to 800-mA load current, and allows the use of low cost chip inductor and capacitors.
