Texas Instruments
TPS62700YZFR
TPS62700YZFR
Regular price
$0.35 USD
Regular price
Sale price
$0.35 USD
Unit price
per
Couldn't load pickup availability

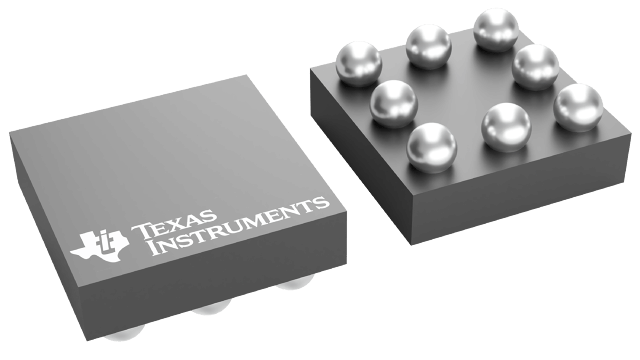

TPS62700YZFR Texas Instruments - Yeehing Electronics
2 MHz 650mA Step-Down Converter for RF Power Amplifiers in tiny 8-pin WCSP Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.133 |
| 100 — 249 | 0.936 |
| 250 — 999 | 0.672 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Output Voltage | 1.3 V to 3.09 V |
| Output Current | 650 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6 V |
| Topology | Buck |
| Input Voltage MIN | 2.5 V |
| Switching Frequency | 2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS62700 |
| Packaging | Reel |
| Input Voltage | 2.5 V to 6 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | TPS62700EVM-264 |
| Operating Supply Current | 1 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| TPS62700YZFR Datasheet |
More Information
The TPS6270x device is a high-efficiency synchronous step-down DC-DC converter optimized for RF power-amplifier (PA) applications. It provides up to 650 mA of output current from a single Li-Ion cell.
