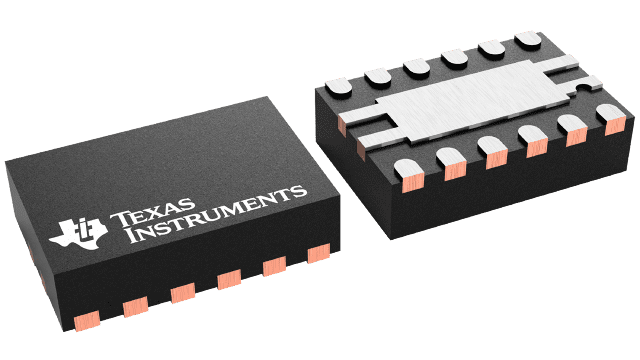

TPS62740DSST Texas Instruments - Yeehing Electronics
2.2V-5.5V input, ultra-low-power 300mA step-down buck DCDC converter with 360nA Iq
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.123 |
| 100 — 249 | 0.984 |
| 250 — 999 | 0.69 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-12 |
| Output Voltage | 1.8 V to 3.3 V |
| Output Current | 300 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.2 V |
| Switching Frequency | 2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS62740 |
| Packaging | Reel |
| Function | Step Down |
| Input Voltage | 2.2 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 300 nA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.2 V |
| Unit Weight | 0.000466 oz |
For more information, please refer to datasheet
Documents
| TPS62740DSST Datasheet |
More Information
The TPS6274x is industrys first step down converter featuring typ. 360nA quiescent current and operating with a tiny 2.2µH inductor and 10µF output capacitor. This new DCS-Control™ based device extends the light load efficiency range below 10µA load currents. TPS62740 supports output currents up to 300mA, TPS62742 up to 400mA. The device operates from rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-MnO2 and two or three cell alkaline batteries. The input voltage range up to 5.5V allows also operation from a USB port and thin-film solar modules. The output voltage is user selectable by four VSEL pins within a range from 1.8V to 3.3V in 100mV steps. TPS6274x features low output ripple voltage and low noise with a small output capacitor. Once the battery voltage comes close to the output voltage (close to 100% duty cycle) the device enters no ripple 100% mode operation to prevent an increase of output ripple voltage. The device then stops switching and the output is connected to the input voltage. The integrated slew rate controlled load switch provides typ. 0.6Ω on-resistance and can distribute the selected output voltage to a temporarily used sub-system. The TPS6274x is available in a small 12 pin 2 × 3mm2 WSON package and supports a total solutions size of 31mm2.
