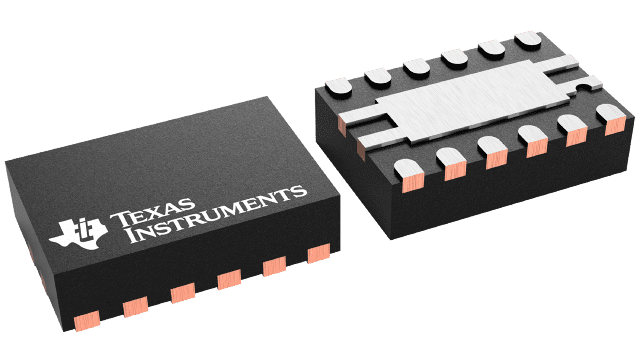

TPS62742DSST Texas Instruments - Yeehing Electronics

3V-5.5V input, 360-nA Iq step-down converter with 400mA and integrated load switch

Pricing (USD)

Quantity	Unit Price
1 — 99	1.153
100 — 249	0.887
250 — 999	0.653
1,000 +	0.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-12
Output Voltage	1.8 V to 3.3 V
Output Current	400 mA
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Buck
Input Voltage MIN	2.2 V
Switching Frequency	2 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS62742
Packaging	Reel
Input Voltage	2.2 V to 5.5 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Step Down Converter
Brand	Texas Instruments
Shutdown	No Shutdown
Moisture Sensitive	Yes
Operating Supply Current	300 nA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.2 V
Unit Weight	0.000466 oz

For more information, please refer to datasheet

Documents

TPS62742DSST Datasheet

More Information

The TPS6274x is industry’s first step down converter featuring typ. 360nA quiescent current and operating with a tiny 2.2µH inductor and 10µF output capacitor. This new DCS-Control™ based device extends the light load efficiency range below 10µA load currents. TPS62740 supports output currents up to 300mA, TPS62742 up to 400mA. The device operates from rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-MnO2 and two or three cell alkaline batteries. The input voltage range up to 5.5V allows also operation from a USB port and thin-film solar modules. The output voltage is user selectable by four VSEL pins within a range from 1.8V to 3.3V in 100mV steps. TPS6274x features low output ripple voltage and low noise with a small output capacitor. Once the battery voltage comes close to the output voltage (close to 100% duty cycle) the device enters no ripple 100% mode operation to prevent an increase of output ripple voltage. The device then stops switching and the output is connected to the input voltage. The integrated slew rate controlled load switch provides typ. 0.6Ω on-resistance and can distribute the selected output voltage to a temporarily used sub-system. The TPS6274x is available in a small 12 pin 2 × 3mm2 WSON package and supports a total solutions size of 31mm2.
