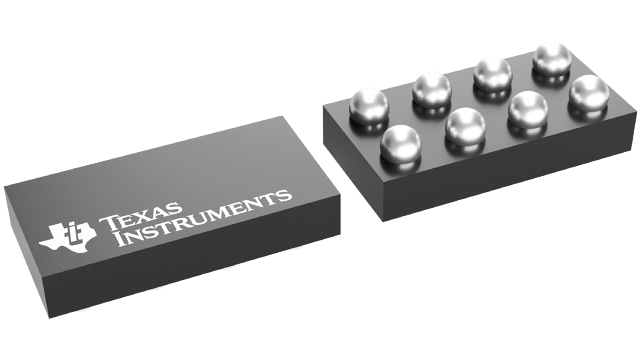

TPS62743YFPR


YeeHing #: Y012-TPS62743YFPR
Inventory: 4500

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS62743YFPR Texas Instruments - Yeehing Electronics

2V-5.5V input, ultra-low-power 300mA to 400mA step-down buck DCDC converter with 360nA Iq

Pricing (USD)

Quantity Unit Price
1 — 99 1.037
100 — 249 0.857
250 — 999 0.615
1,000 + 0.37

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Package / Case DSBGA-8
Output Voltage 1.2 V to 3.3 V
Output Current 300 mA
Number of Outputs 1 Output
Input Voltage MAX 5.5 V
Topology Buck
Input Voltage MIN 2.15 V
Switching Frequency 1.2 MHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series TPS62743
Packaging Reel
Input Voltage 2.15 V to 5.5 V
Operating Temperature Range - 40 C to + 85 C
Type High Efficient Buck Converter
Brand Texas Instruments
Operating Supply Current 300 nA
Product Type Switching Voltage Regulators
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 2.15 V
Unit Weight 0.000053 oz

For more information, please refer to datasheet

Documents

TPS62743YFPR Datasheet

More Information

The TPS62743 is a high efficiency step down converter with ultra low quiescent current of typical 360 nA. The device is optimized to operate with a 2.2-µH inductor and 10µF output capacitor. The device uses DCS-Control™ and operates with a typical switching frequency of 1.2 MHz. In Power Save Mode the device extends the light load efficiency down to a load current range of 10-µA and below. TPS62743 provides an output current of 300 mA. Once started the device operates down to an input voltage range of 2.0 V. This allows to operate the device directly from a single Li-MnO2 coin cell.
