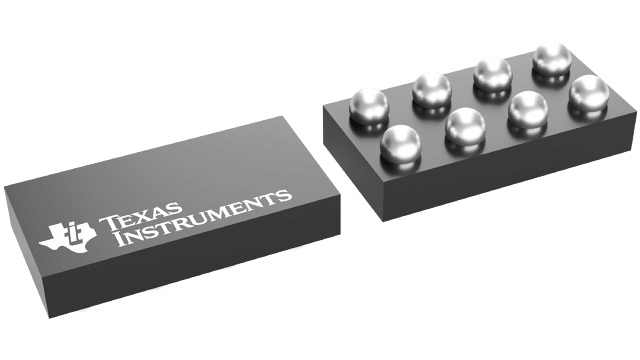

TPS62743YFPT Texas Instruments - Yeehing Electronics

2V-5.5V input, ultra-low-power 300mA to 400mA step-down buck DCDC converter with 360nA Iq

Pricing (USD)

Quantity	Unit Price
1 — 99	1.245
100 — 249	1.029
250 — 999	0.739
1,000 +	0.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-8
Output Voltage	1.2 V to 3.3 V
Output Current	300 mA
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Buck
Input Voltage MIN	2.15 V
Switching Frequency	1.2 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS62743
Packaging	Reel
Input Voltage	2.15 V to 5.5 V
Operating Temperature Range	- 40 C to + 85 C
Type	Step-Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	TPS62743EVM-689
Load Regulation	0.001 %/mA
Operating Supply Current	300 nA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.15 V
Unit Weight	0.000081 oz

For more information, please refer to datasheet

Documents

TPS62743YFPT Datasheet

More Information

The TPS62743 is a high efficiency step down converter with ultra low quiescent current of typical 360 nA. The device is optimized to operate with a 2.2-µH inductor and 10µF output capacitor. The device uses DCS-Control™ and operates with a typical switching frequency of 1.2 MHz. In Power Save Mode the device extends the light load efficiency down to a load current range of 10-µA and below. TPS62743 provides an output current of 300 mA. Once started the device operates down to an input voltage range of 2.0 V. This allows to operate the device directly from a single Li-MnO2 coin cell.
