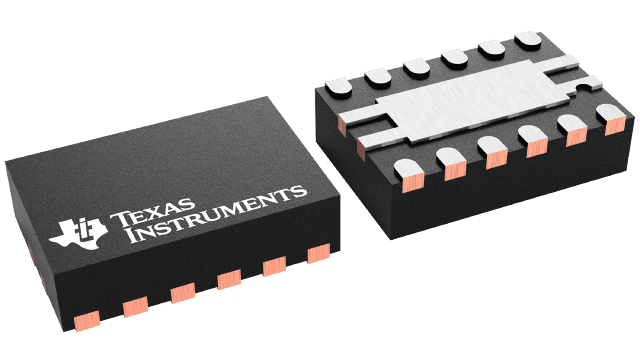

TPS627451DSST Texas Instruments - Yeehing Electronics

10Vin Ultra Low Iq Step-Down Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	1.568
100 — 249	1.295
250 — 999	0.93
1,000 +	0.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-12
Output Voltage	1.3 V to 2.8 V
Output Current	300 mA
Number of Outputs	1 Output
Input Voltage MAX	10 V
Topology	Buck
Input Voltage MIN	3.3 V
Switching Frequency	2.5 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS627451
Packaging	Reel
Height	0.8 mm
Input Voltage	3.3 V to 10 V
Length	3.1 mm
Operating Temperature Range	- 40 C to + 125 C
Type	Synchronous Step Down Converter
Width	2.1 mm
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	TPS62745EVM-622
Moisture Sensitive	Yes
Operating Supply Current	400 nA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3.3 V
Unit Weight	0.000469 oz

For more information, please refer to datasheet

Documents

TPS627451DSST Datasheet

More Information

The TPS62745 is a high efficiency ultra low power synchronous step down converter optimized for low power wireless applications. It provides a regulated output voltage consuming only 400-nA quiescent current. The device operates from two rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-SO2, Li-MnO2 or four to six cell alkaline batteries. The input voltage range up to 10 V allows also operation from a USB port and thin-film solar modules. The output voltage is set with four VSEL pins between 1.8 V and 3.3 V for TPS62745 or 1.3 V and 2.8 V for TPS627451. TPS62745 features low output ripple voltage and low noise with a small output capacitor. An internal input voltage switch controlled by pin EN_VIN_SW connects the supply voltage to pin VIN_SW. The switch is intended to be used for an external voltage divider, scaling down the input voltage for an external ADC. The switch is automatically opened when the supply voltage is below the undervoltage lockout threshold. The TPS62745 is available in a small 12 pin 3 mm × 2 mm WSON package.
