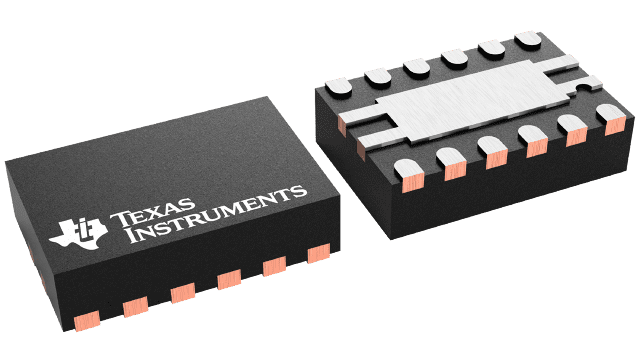

TPS62745DSST


YeeHing #: Y012-TPS62745DSST
Inventory: 58800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS62745DSST Texas Instruments - Yeehing Electronics

3.3V-10V input, 300mA Ultra Low Iq step-down converter with VSEL and input voltage switch

Pricing (USD)

Quantity Unit Price
1 — 99 1.212
100 — 249 1.062
250 — 999 0.745
1,000 + 0.34

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case WSON-12
Output Voltage 1.8 V to 3.3 V
Output Current 300 mA
Number of Outputs 1 Output
Input Voltage MAX 10 V
Topology Buck
Input Voltage MIN 3.3 V
Switching Frequency 2.5 MHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series TPS62745
Packaging Reel
Height 0.8 mm
Input Voltage 3.3 V to 10 V
Length 3.1 mm
Operating Temperature Range - 40 C to + 125 C
Type Synchronous Step Down Converter
Width 2.1 mm
Brand Texas Instruments
Shutdown Shutdown
Development Kit TPS62745EVM-622
Moisture Sensitive Yes
Operating Supply Current 400 nA
Product Type Switching Voltage Regulators
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 3.3 V
Unit Weight 0.000469 oz

For more information, please refer to datasheet

Documents

TPS62745DSST Datasheet

More Information

The TPS62745 is a high efficiency ultra low power synchronous step down converter optimized for low power wireless applications. It provides a regulated output voltage consuming only 400-nA quiescent current. The device operates from two rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-SO2, Li-MnO2 or four to six cell alkaline batteries. The input voltage range up to 10 V allows also operation from a USB port and thin-film solar modules. The output voltage is set with four VSEL pins between 1.8 V and 3.3 V for TPS62745 or 1.3 V and 2.8 V for TPS627451. TPS62745 features low output ripple voltage and low noise with a small output capacitor. An internal input voltage switch controlled by pin EN_VIN_SW connects the supply voltage to pin VIN_SW. The switch is intended to be used for an external voltage divider, scaling down the input voltage for an external ADC. The switch is automatically opened when the supply voltage is below the undervoltage lockout threshold. The TPS62745 is available in a small 12 pin 3 mm × 2 mm WSON package.
