Texas Instruments

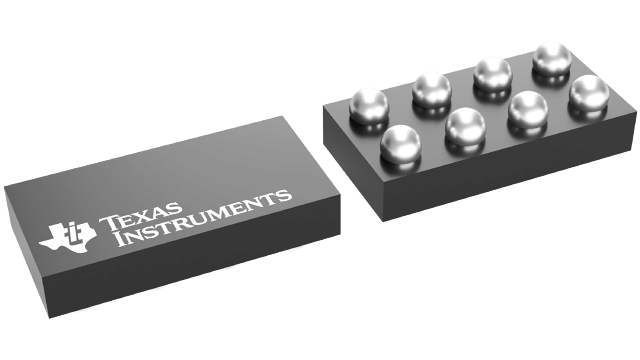

TPS62746YFPT
TPS62746YFPT
Regular price
$0.39 USD
Regular price
Sale price
$0.39 USD
Unit price
per
Couldn't load pickup availability
TPS62746YFPT Texas Instruments - Yeehing Electronics
Ultra-low-power DCDC converter with Vin-switch in WCSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.245 |
| 100 — 249 | 1.029 |
| 250 — 999 | 0.739 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Output Voltage | 1.2 V, 1.8 V |
| Output Current | 300 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2 V |
| Switching Frequency | 1.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS62746 |
| Packaging | Reel |
| Height | 0.5 mm |
| Input Voltage | 2 V to 5.5 V |
| Length | 1.592 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Step-Down Converter |
| Width | 0.896 mm |
| Brand | Texas Instruments |
| Load Regulation | 0.001 %/mA |
| Operating Supply Current | 300 nA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2 V |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| TPS62746YFPT Datasheet |
More Information
The TPS62746 is a high efficiency step down converter with ultra low quiescent current of typical 360 nA. The device is optimized to operate with a 2.2-µH inductor and 10µF output capacitor. The device uses DCS-Control™ and operates with a typical switching frequency of 1.2 MHz. In Power Save Mode the device extends the light load efficiency down to a load current range of 10-µA and below. TPS62746 provides an output current of 300 mA. Once started the device operates down to an input voltage range of 2.0 V. This allows to operate the device directly from a single Li-MnO2 coin cell.
