Texas Instruments
TPS62806YKAR
TPS62806YKAR
Regular price
$0.26 USD
Regular price
Sale price
$0.26 USD
Unit price
per
Couldn't load pickup availability

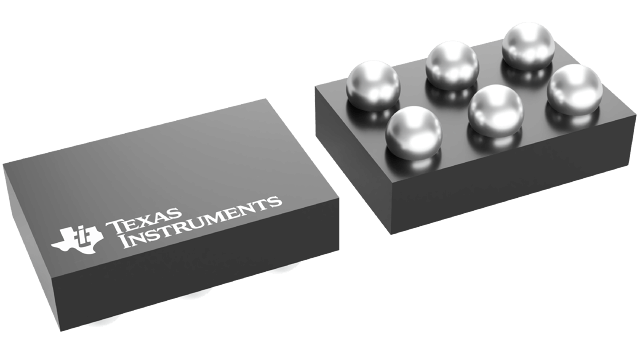

TPS62806YKAR Texas Instruments - Yeehing Electronics
1.8V-5.5V input, tiny, 600mA ultra-low Iq step-down converter in 1.05 x 0.70mm chip scale package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.934 |
| 100 — 249 | 0.718 |
| 250 — 999 | 0.529 |
| 1,000 + | 0.26 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| Output Voltage | 0.4 V to 0.775 V |
| Output Current | 600 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 1.8 V |
| Switching Frequency | 1.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS62806 |
| Packaging | Reel |
| Input Voltage | 1.8 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0 %/mA |
| Operating Supply Current | 8 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1.8 V |
For more information, please refer to datasheet
Documents
| TPS62806YKAR Datasheet |
More Information
The TPS6280x device family is a step-down converter with 2.3-µA typical quiescent current featuring the highest efficiency and smallest solution size. TIs DCS-Control™ topology enables the device to operate with tiny inductors and capacitors with a switching frequency up to 4 MHz. At light load conditions, the device seamlessly enters power save mode to reduce switching cycles and maintain high efficiency.
