TPS62812QWRWYRQ1


YeeHing #: Y012-TPS62812QWRWYRQ1
Inventory: 76400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS62812QWRWYRQ1 Texas Instruments - Yeehing Electronics

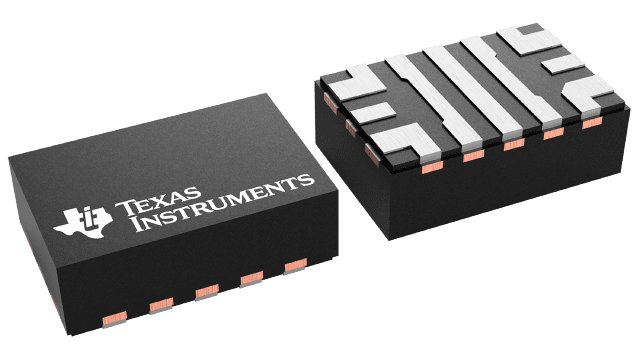

Automotive 2.75-V to 6-V, 2-A step-down converter in a 2mm x 3mm wettable-flanks QFN package

Pricing (USD)

Quantity Unit Price
1 — 99 1.792
100 — 249 1.48
250 — 999 1.063
1,000 + 2.74

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS62812QWRWYRQ1 Datasheet

More Information

The TPS6281x-Q1 is family of pin-to-pin 1-A, 2-A, 3-A, and 4-A synchronous step-down DC/DC converters. All devices offer high efficiency and ease of use. The TPS6281x-Q1 family is based on a peak current mode control topology. The TPS6281x-Q1 is designed for automotive applications such as infotainment and advanced driver assistance systems. Low resistive switches allow up to 4-A continuous output current at high ambient temperature. The switching frequency is externally adjustable from 1.8 MHz to 4 MHz and can also be synchronized to an external clock in the same frequency range. In PWM/PFM mode, the TPS6281x-Q1 automatically enter Power Save Mode at light loads to maintain high efficiency across the whole load range. The TPS6281x-Q1 provide 1% output voltage accuracy in PWM mode which helps design a power supply with high output voltage accuracy. The SS/TR pin allows setting the start-up time or forming tracking of the output voltage to an external source. This allows external sequencing of different supply rails and limiting the inrush current during start-up.
