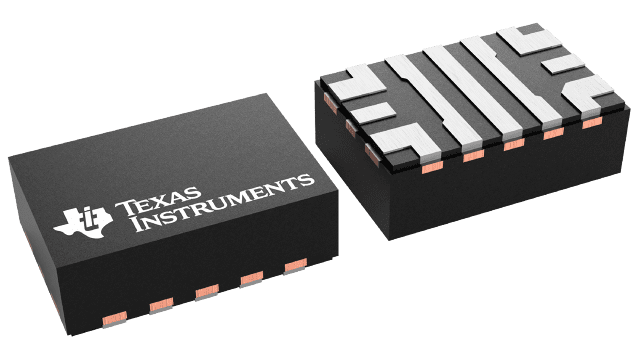

TPS62813MWRWYR


YeeHing #: Y012-TPS62813MWRWYR
Inventory: 4600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS62813MWRWYR Texas Instruments - Yeehing Electronics

2.75-V to 6-V, 3-A step-down converter in a 2-mm x 3-mm QFN package with -55C extended temperature

Pricing (USD)

Quantity Unit Price
1 — 99 3.046
100 — 249 2.669
250 — 999 1.871
1,000 + 1.06

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS62813MWRWYR Datasheet

More Information

The TPS6281xM is family of pin-to-pin 1-A, 2-A, 3-A, and 4-A synchronous step-down DC/DC converters. All devices offer high efficiency and ease of use. The family of devices is based on a peak current mode control topology. Low-resistive switches allow up to 4-A continuous output current at high ambient temperature. The switching frequency is externally adjustable from 1.8 MHz to 4 MHz and can also be synchronized to an external clock in the same frequency range. The device can automatically enter power save mode (PSM) at light loads to maintain high efficiency across the whole load range. The device provides 1% output voltage accuracy in PWM mode which helps design a power supply with high output voltage accuracy. The SS/TR pin allows the user to set the start-up time or form tracking of the output voltage to an external source, allowing external sequencing of different supply rails and limiting the inrush current during start-up.
