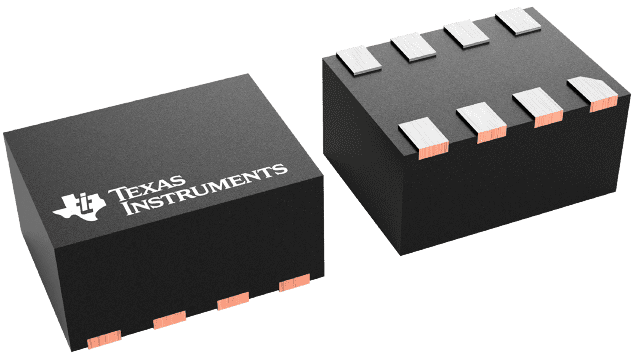

TPS62821DLCR


YeeHing #: Y012-TPS62821DLCR
Inventory: 182000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS62821DLCR Texas Instruments - Yeehing Electronics

2.4-V to 5.5-V input, 1-A step-down converter with 1% accuracy in 1.5-mm x 2-mm VSON-HR package

Pricing (USD)

Quantity Unit Price
1 — 99 0.333
100 — 249 0.226
250 — 999 0.175
1,000 + 0.09

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case VSON-HR-8
Output Voltage 0.6 V to 4 V
Output Current 1 A
Number of Outputs 1 Output
Input Voltage MAX 5.5 V
Topology Buck
Input Voltage MIN 2.4 V
Switching Frequency 2.2 MHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series TPS62821
Packaging Reel
Input Voltage 2.4 V to 5.5 V
Operating Temperature Range - 40 C to + 125 C
Quiescent Current 4 uA
Type Step-Down Converter
Brand Texas Instruments
Shutdown Shutdown
Development Kit TPS62821EVM-005
Load Regulation 0.2 %/A
Product Type Switching Voltage Regulators
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 2.4 V

For more information, please refer to datasheet

Documents

TPS62821DLCR Datasheet

More Information

The TPS6282x is an all-purpose and easy to use synchronous step-down DC-DC converter with a very low quiescent current of only 4 µA. It supplies up to 3A output current (TPS62823) from a 2.4-V to 5.5-V input voltage. Based on the DCS-Control™ topology it provides a fast transient response.
