Texas Instruments
TPS62823DLCT
TPS62823DLCT
Regular price
$0.45 USD
Regular price
Sale price
$0.45 USD
Unit price
per
Couldn't load pickup availability

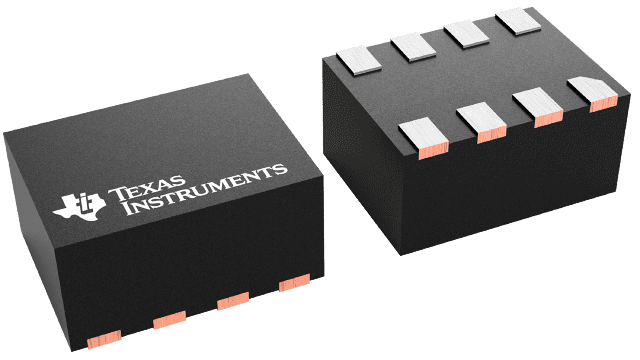

TPS62823DLCT Texas Instruments - Yeehing Electronics
2.4-V to 5.5-V input, 3-A step-down converter with 1% accuracy in 1.5-mm x 2-mm VSON-HR package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.452 |
| 100 — 249 | 1.199 |
| 250 — 999 | 0.861 |
| 1,000 + | 0.45 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-HR-8 |
| Output Voltage | 0.6 V to 4 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.4 V |
| Switching Frequency | 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS62823 |
| Packaging | Reel |
| Input Voltage | 2.4 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 4 uA |
| Type | Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS62823EVM-005 |
| Load Regulation | 0.2 %/A |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.4 V |
For more information, please refer to datasheet
Documents
| TPS62823DLCT Datasheet |
More Information
The TPS6282x is an all-purpose and easy to use synchronous step-down DC-DC converter with a very low quiescent current of only 4 µA. It supplies up to 3A output current (TPS62823) from a 2.4-V to 5.5-V input voltage. Based on the DCS-Control™ topology it provides a fast transient response.
